1. Expanded Voltage & Diode Testing Capabilities
The P60 Automotive Circuit System Analyzer is engineered for advanced automotive and machinery electrical diagnostics. With upgraded voltage detection and newly added diode detection, it provides precise measurement and fault identification across a wide range of applications, making it a powerful tool for both technicians and electricians.
2. Comprehensive Circuit Diagnostic Functions
The P60 integrates multiple essential diagnostic features to streamline electrical troubleshooting:
Component Activation — Energizes components for direct testing

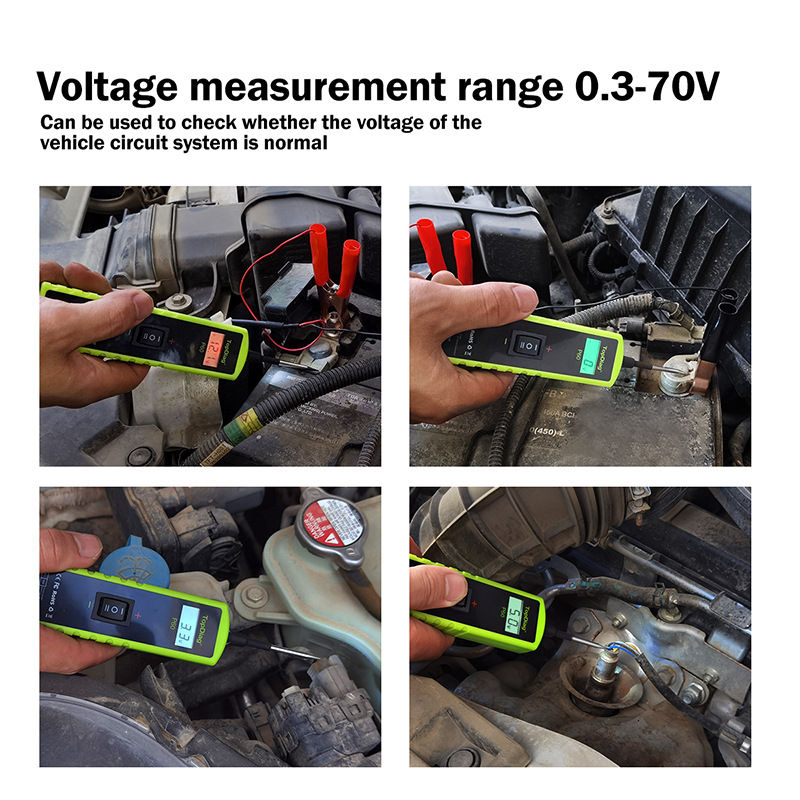

Voltage Detection (0–70V) — Expanded range for more accurate diagnostics
Diode Detection — Checks diode integrity and direction
Positive & Negative Testing — Instantly identifies polarity
Continuity Test — Locates broken lines and open circuits
Ground Wire Inspection — Detects poor grounding conditions
Short Circuit Tracing — Tracks wiring shorts efficiently
Its all-in-one design enhances workflow speed and reduces diagnostic complexity.
3. Suitable for 6–30V Vehicles & Heavy Equipment
The P60 supports electrical diagnostics across a wide variety of platforms, including:
Passenger cars & trucks
Motorcycles & vans
Excavators & construction machinery
Marine vessels
Industrial & agricultural equipment
This makes it ideal for workshops that handle mixed fleets or heavy-duty diagnostics.
4. Durable Construction & Safety Protection
Built with a robust ABS housing and a clear LCD display, the P60 ensures durability and easy visibility under workshop conditions. For enhanced safety, it includes:
Automatic Overcurrent Protection — Breaker trips automatically above 8A
Wide-range voltage measurement for high diagnostic flexibility
Despite its compact size, it delivers strong and stable performance.
5. Optimized for Professional Technicians
With expanded measurement capability, diode testing, and essential wiring diagnostic functions, the P60 greatly improves troubleshooting speed and accuracy, offering a high-value tool for automotive electricians, repair shops, and mobile diagnostic services.
Technical Specifications
Model: P60
Shell Material: ABS
Size: 135 × 35 × 20 mm
Weight: 0.21 kg
Screen: Liquid Crystal Display
Operating Voltage: 6–30V
Voltage Measurement Range: 0–70V
Overheat Protection: No
Overcurrent Protection: Automatic breaker trips if current exceeds 8A
Software Update: No
