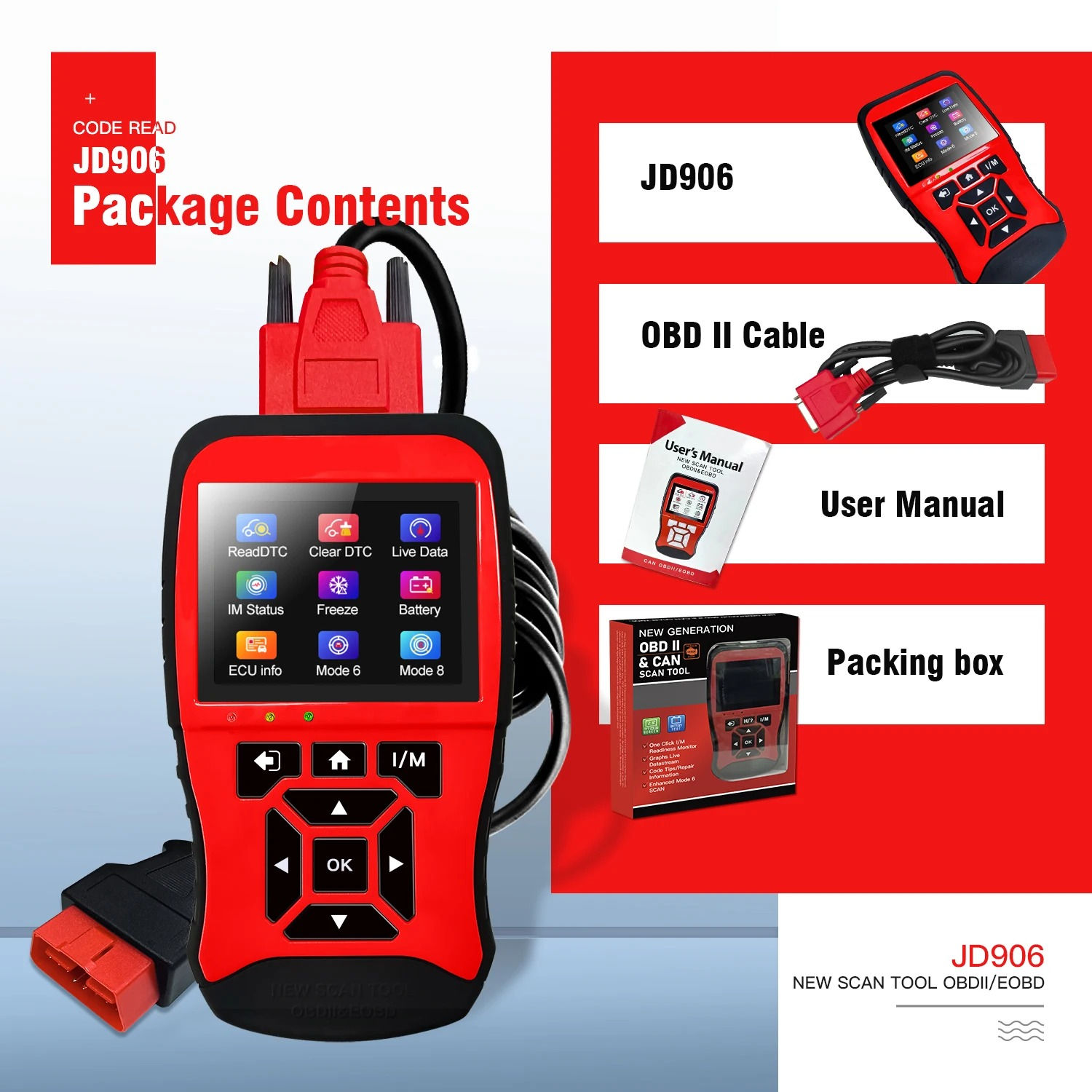

JD906 High-Definition Handheld | Professional OBD2 Diagnostic Tool
The JD906 is engineered for comprehensive fault location. As a professional OBD2 diagnostic tool, it covers all 10 modes of OBDII testing, including specialized functions like Mode 6 (On-Board Monitor Test) and Mode 8 (Evaporative System Test). It doesn’t just tell you what is wrong;
it provides the granular data needed to fix it.
Complete DTC Management: Instantly read and clear Diagnostic Trouble Codes, with a built-in DTC Lookup library to define error codes without needing an internet connection.
Precision O2 Sensor Testing: Monitor oxygen sensor output to troubleshoot fuel efficiency issues and catalytic converter performance.
Real-Time Data Streaming: Observe live engine parameters in a clear, graphical format on the 3.2-inch high-resolution screen.
Freeze Frame Analysis: Capture a "snapshot" of the engine conditions at the exact moment a fault was triggered for accurate, evidence-based repairs.
Hardware & Durability
High-Resolution 3.2" Screen: The upgraded 320×240 TFT display ensures that multi-line data streams and graphs remain perfectly legible in all lighting conditions.
Rugged ABS Construction: Designed for the daily wear and tear of a workshop, the JD906 is both lightweight and impact-resistant.
Battery-Free Operation: Powered directly by your vehicle's OBDII port (8–18V), ensuring it is always ready for use in emergencies.
Future-Proof Updates: Keep your tool current with evolving vehicle technologies via the integrated USB port for firmware updates.
Technical Specifications
Feature | Specification |
Model | JD906 |
Display | 3.2-Inch TFT Color Screen |
Coverage | ~97% of OBDII Compliant Vehicles |
Voltage Range | 8V – 18V |
Dimensions | 168 × 96 × 30 mm |
Weight | 0.2 kg |
Update Method | USB Firmware Optimization |
Full Protocol Support
The JD906 is a universal professional OBD2 diagnostic tool that communicates seamlessly with all major vehicle protocols:
ISO9141-2 & ISO14230-4 KWP (5-baud and Fast Init)
SAE J1850 PWM & VPW
ISO15765-4 CAN (11bit/29bit, 250K/500K baud)
Equip your workshop with the JD906—the professional-grade solution for fast, accurate, and deep-level vehicle diagnostics.
