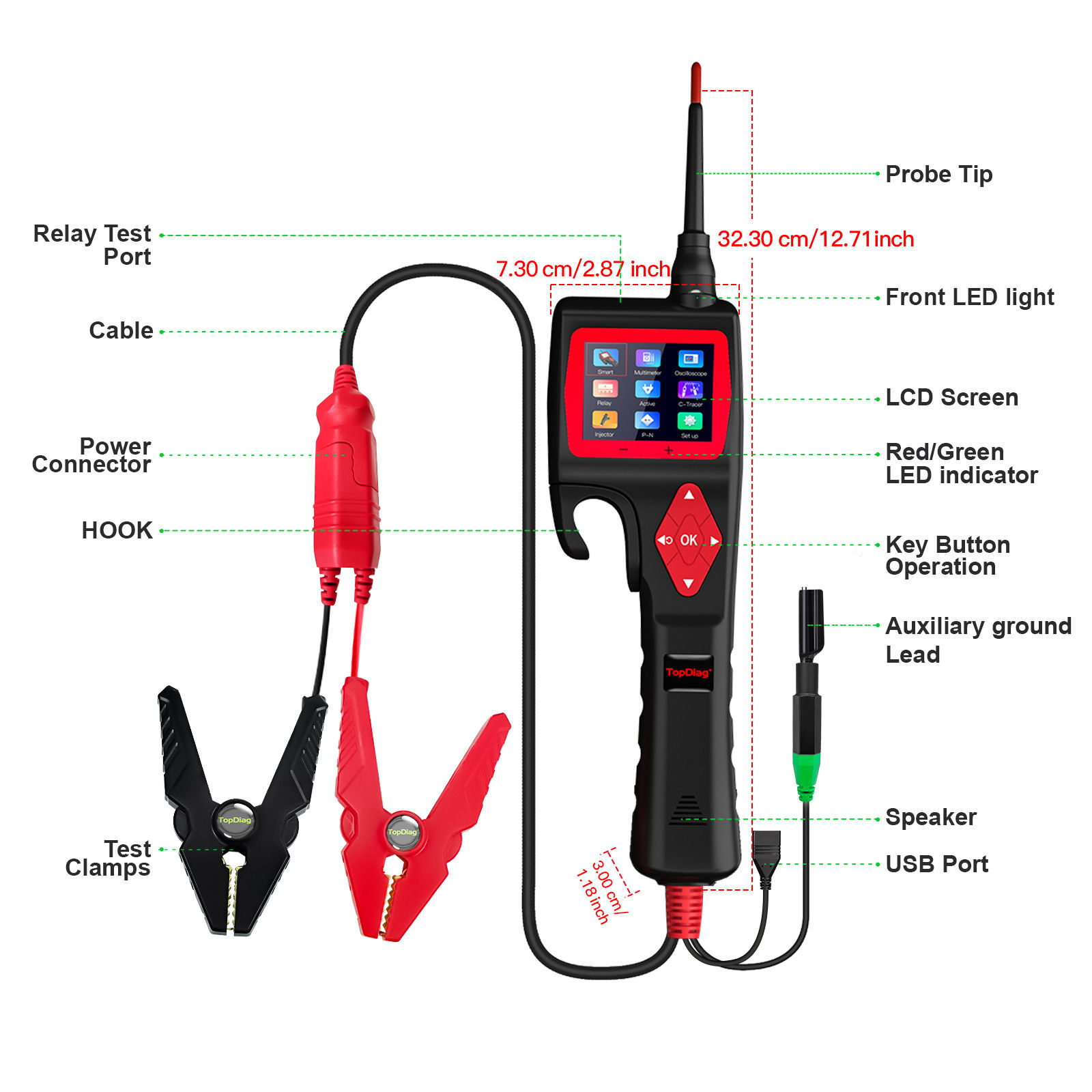

P200 Automotive Circuit System Analyzer | Intelligent 9–30V Circuit Tester
The P200 is engineered for speed, accuracy, and safety. It goes far beyond a basic test light, offering a sophisticated 2.4-inch TFT color display that provides a clear visual representation of voltage, resistance, and signal waveforms. With its ability to detect leakage as low as 3mA and measure frequencies up to 200kHz, the P200 is the ultimate solution for identifying parasitic draws, faulty relays, and intermittent wiring issues.
Comprehensive Circuit Diagnostics
All-in-One Multimeter & Oscilloscope: Monitor voltage (2mV–100V) and resistance with high precision, or switch to the 10Hz–200kHz oscilloscope mode to perform detailed waveform analysis on sensors and communication lines.
Smart Component Activation: Instantly power up components like cooling fans or fuel pumps directly from the probe. The built-in 0–5V adjustable power supply also allows you to safely simulate sensor outputs for ECU testing.
Specialized System Tests: Includes dedicated modes for Relay Detection and Fuel Injector Testing, making it easy to isolate mechanical failures from electrical circuit faults.
Positive/Negative Polarity Detection: Instantly identify power and ground circuits with visual and audible feedback, accelerating the diagnostic workflow in dense wiring harnesses.
Safety & Hardware Performance
Automatic Circuit Protection: The P200 features an intelligent internal circuit breaker that trips automatically if current exceeds 18A, protecting both the vehicle's sensitive electronics and the tool itself.
Thermal Management: An integrated temperature sensor provides overheat protection, ensuring the device remains stable during long-duration component testing.
Industrial Visibility: The F8 High-Brightness LED torch allows you to work confidently in dark engine bays or behind dashboards.
Vivid 2.4" TFT Screen: The high-resolution (320 × 240) interface ensures that data and waveforms are legible in all workshop lighting conditions.
Technical Specifications
Feature | Specification |
Model | P200 Automotive Circuit System Analyzer |
Voltage Range | 9V – 30V |
Current Detection | 3 mA – 25 A |
Oscilloscope Range | 10 Hz – 200 kHz |
Voltage Accuracy | 2 mV – 100 V |
Resistance Detection | 10 Ω – 200 kΩ |
Display | 2.4-Inch TFT Color Screen |
Protection | Automatic Circuit Breaker & Overheat Sensor |
The Technician’s Daily Essential
The P200 balances high-end analytical depth with rugged, everyday usability. By consolidating multiple diagnostic functions into a single handheld unit, the P200 Automotive Circuit System Analyzer empowers professionals to work smarter, reducing diagnostic time and increasing repair accuracy.
Take the guesswork out of electrical troubleshooting with the P200—the intelligent, safe, and powerful choice for modern automotive circuit analysis.
