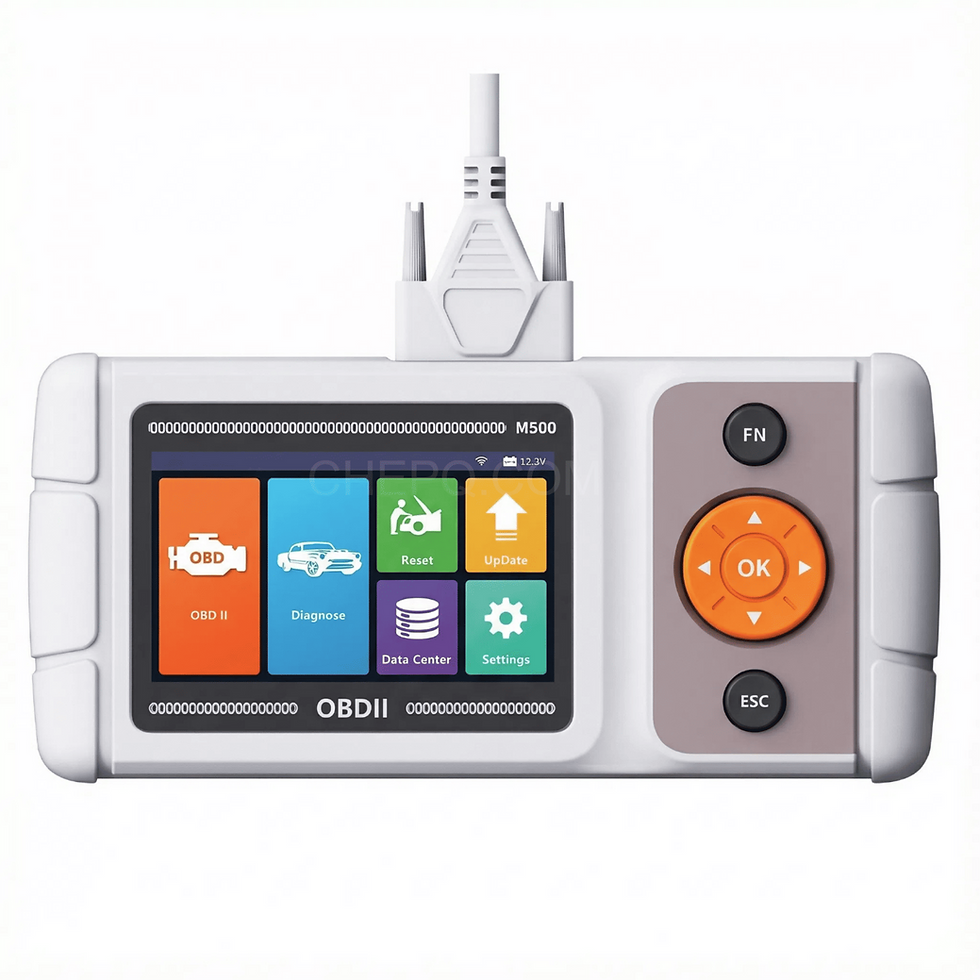

M500 Series | High-Resolution Four-System Diagnostic Scanner
The M500 is engineered for those who require total transparency from their vehicle’s drivetrain. Its dedicated transmission diagnostics suite allows you to monitor shifting logic and sensor data, helping you identify slipping gears or electronic solenoid issues before they lead to costly repairs. Whether you are performing a precision Oil Reset or calibrating a Steering Angle Sensor, the M500 delivers the clinical accuracy required for expert-level maintenance.
Elite Four-System & Maintenance Intelligence
Professional Transmission Diagnostics: Gain direct access to the transmission control module to monitor real-time data, identify shifting anomalies, and clear fault codes that affect drivability.

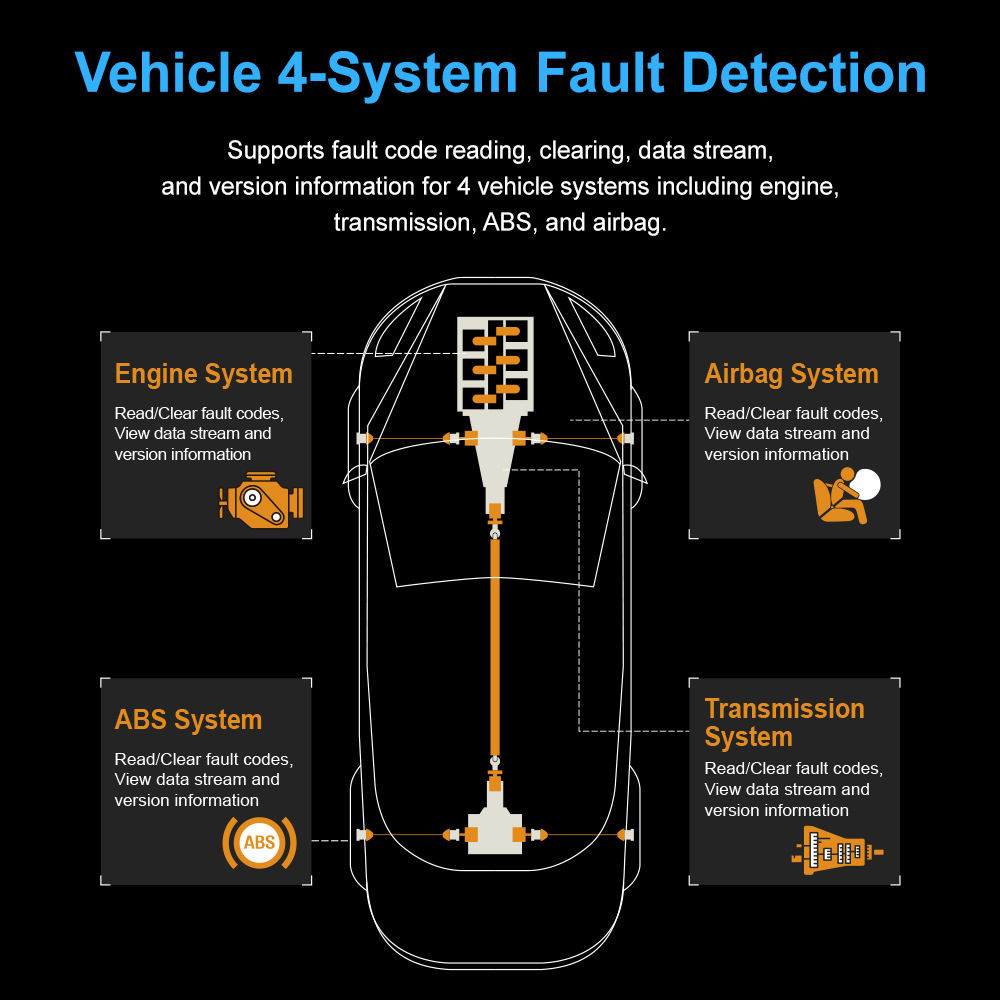

Total Safety Audit (ABS/SRS): Perform deep-system scans of the Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS/Airbag) to ensure critical safety components are fully operational.
Advanced Reset Functions: Includes essential maintenance tools such as Oil Reset, Throttle Matching, and Steering Angle Matching to keep your vehicle calibrated after service.
Full OBDII Functional Suite: Effortlessly Read and Clear Fault Codes, perform Oxygen Sensor Tests, and access Mode 6 & Mode 8 Diagnostics for comprehensive component monitoring.
Visual Data Mastery: View live Data Streams and Freeze-Frame Data on a high-resolution interface to understand exactly what was happening at the moment a fault occurred.

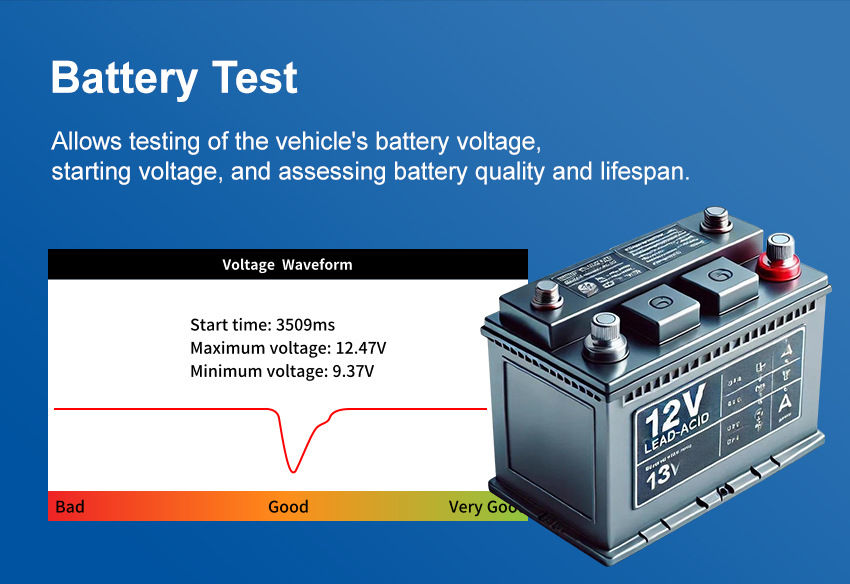

Compliance & Electrical Check: Verify emissions status with I/M Readiness checks and monitor Battery Voltage to ensure a stable electrical foundation.
Hardware & Professional Workflow

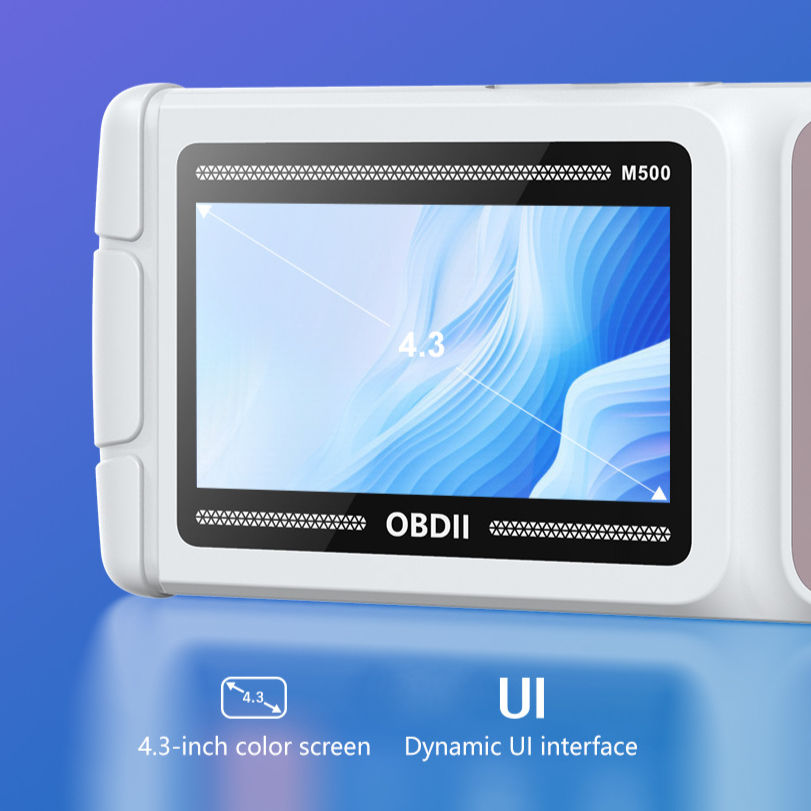

Expansive 4.3-Inch Color Display: One of the largest screens in its class, providing exceptional clarity for complex data streams and graphical diagnostic results.
One-Click Optimization: Features One-Click Upgrades via Wi-Fi and a dedicated Feedback system to ensure your device always has the latest vehicle coverage and software enhancements.

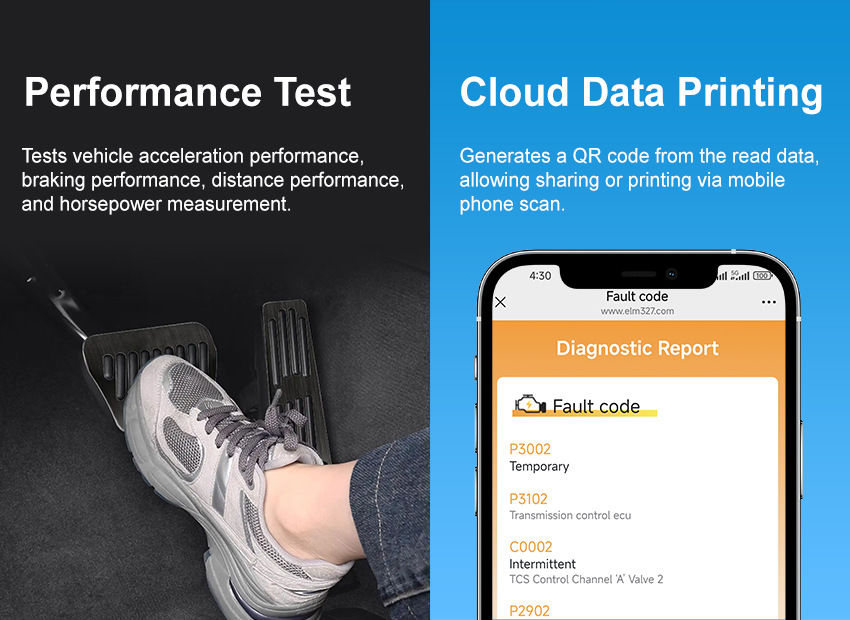

Cloud Print & Global Support: Supports Cloud Print for instant sharing of diagnostic reports and provides localized operation in 11 major languages, including English, German, French, Spanish, Italian, and more.
Intuitive User Interface: Designed with a fast, responsive menu system that allows technicians to move from initial scan to reset function in seconds.
Technical Specifications
Feature | Specification |
Model | M500 Four-System Scanner |
Primary Systems | Engine, Transmission, ABS, SRS |
Display | 4.3-inch High-Resolution Color LCD |
Reset Services | Oil, Throttle, Steering Angle |
Update Method | One-Click Online Upgrade |
Connectivity | Standard OBDII / CAN Bus |
The Accurate Standard for Drivetrain Integrity
The CHEPQ M500 proves that comprehensive transmission diagnostics and safety system monitoring should be accessible to every serious vehicle owner. By merging elite four-system access with specialized maintenance resets and a massive color interface, it empowers you to manage your vehicle's health with total professional confidence.
Take command of your vehicle’s most critical systems with the M500—the fast, accurate, and multi-system solution for modern automotive diagnostics.
